Case Study

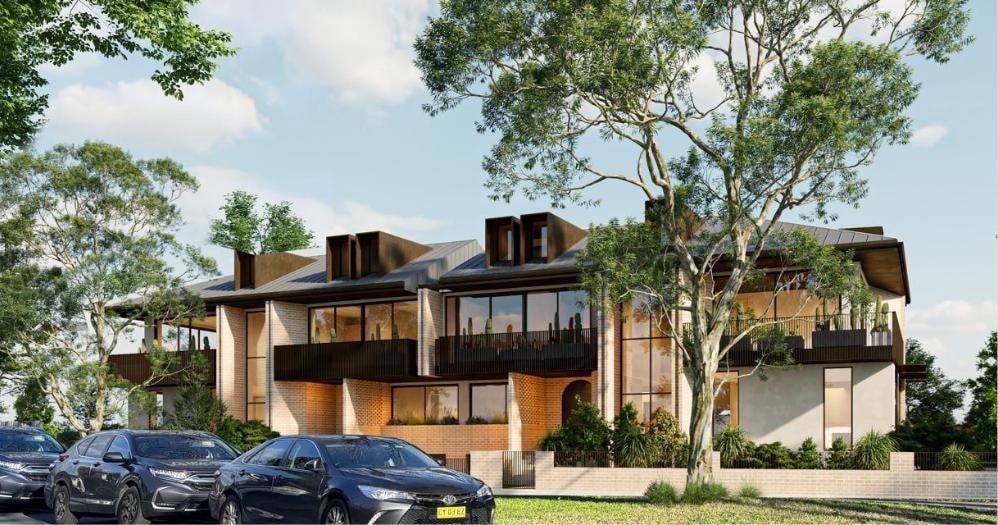

Chatswood Duplex
Duplex development — DA stormwater, swept path analysis, and driveway design
Chatswood Duplex DA
- Location
- Chatswood
- Council
- Willoughby City Council
- Project type
- Duplex
- Approval pathway
- DA
Services provided
- DA stormwater management plan
- Swept path analysis
- Driveway long section
Engineering challenge
The duplex development required a swept path analysis to demonstrate that the design vehicle could safely access and manoeuvre within the site, and a driveway long section to satisfy Council's DCP grade requirements.
CATES solution
CATES prepared a DA stormwater management plan, AutoTURN swept path analysis for the design vehicle, and a driveway long section demonstrating compliant grades to Willoughby City Council's DCP requirements.
Outcome
DA stormwater and traffic documentation prepared and submitted with the development application.
